Rigid STS 304 Grooved Joint (12 size)
Free Shipping
'The STS joint is made of stainless steel with joint covers, bolts and nuts and can be applied to stainless steel piping.

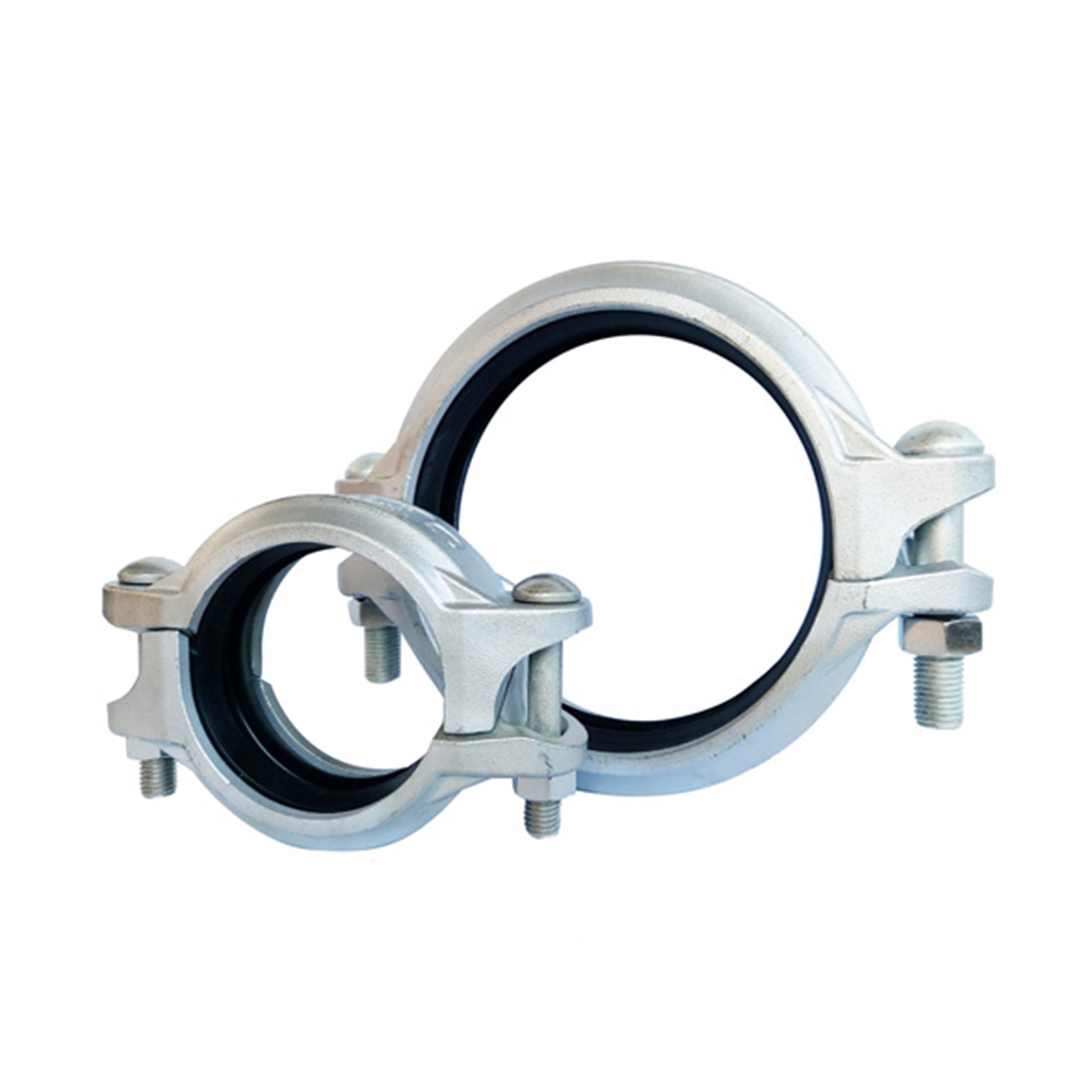

The Model AJ130R Stainless Steel Rigid Coupling is the ideal coupling for use with Sch. 5S, Sch. 10S or Sch. 40S stainless steel pipe where a rigid connection is desired. The Model AJ130R features a tongue and groove mechanism and a heavy duty bolt pad design resulting in a positive rigid connection. The AJ130R has no built-in teeth that could harm light wall pipe or fittings. The AJ130R couplings are comprised of two identical CF8 (304) or CF8M (316) housing segments, EPDM gasket and stainless steel track bolts and heavy duty nuts.
AJ130R couplings should always be installed so that the coupling bolt pads make metal to metal contact.
The tongue and groove style rigid coupling may allow for rotation of pipe when installed on deeper than specified grooves.
• Grooved joint Rigid type
• Joint material: Stainless steel (SCS-13)
• Material: EPDM
• Bolt/nut material: stainless steel
SKU: ASJ-RSGJ-1 810068937251 ASJ-RSGJ-1Q 810068937268 ASJ-RSGJ-1H 810068937275 ASJ-RSGJ-2 810068937282 ASJ-RSGJ-2H 810068937299 ASJ-RSGJ-3 810068937305 ASJ-RSGJ-4 810068937312 ASJ-RSGJ-5 810068937329 ASJ-RSGJ-6 810068937336 ASJ-RSGJ-8 810068937343 ASJ-RSGJ-10 810068937350 ASJ-RSGJ-12 810068937367
UPC: 810068937251 810068937268 810068937275 810068937282 810068937299 810068937305 810068937312 810068937329 810068937336 810068937343 810068937350 810068937367
